Main Features
* PLC control standard, with programmable function

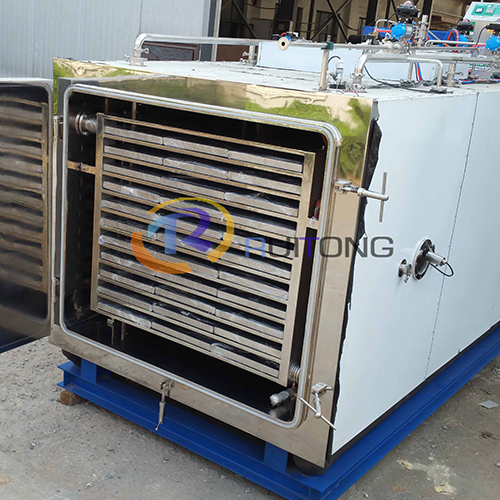

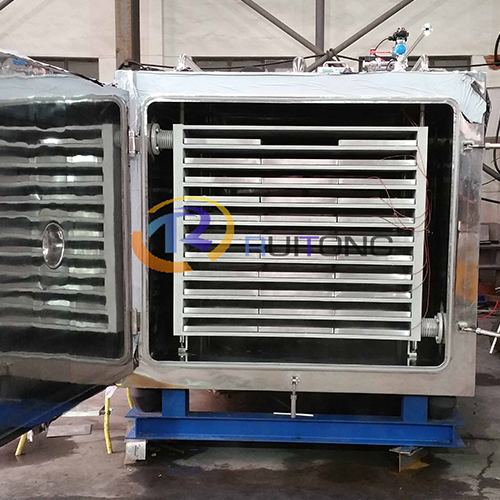

* Freeze and drying process are both made on shelf
* Silicon oil heating, shelf temperature accuracy is ± 1℃

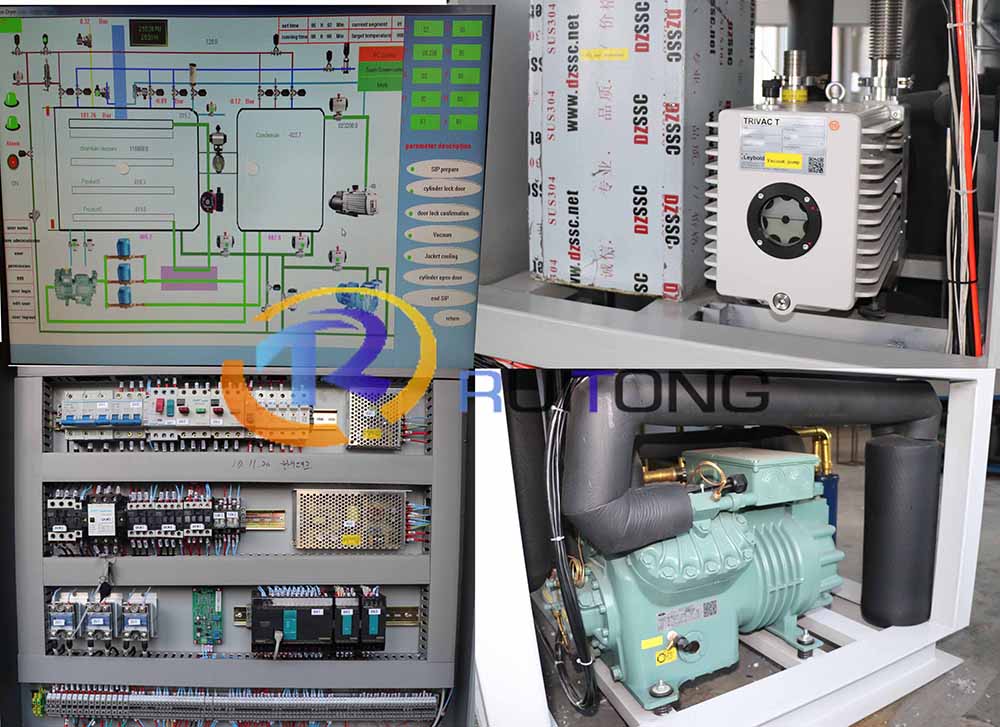

* Color LCD touch screen, English interface, display of freeze drying curves, store data
* Login facility on control panel; Multilevel password protection,effectively prevent illegal operation.
* Inner wall of drying chamber, condenser ,shelf, trays are of stainless steel 304
* 32 groups program can be stored, each program can be set up 36 segments
* With USB port to output drying data, to open and view in Excel format
* With Nitrogen inflation valve
* Alarm：ambient temperature too high , vacuum degree abnormal，condenser temp. too high, shelf temp. too high, pre-freeze finishing，drying process finishing
Options
* vacuum degree adjustment * Eutectic point test *CIP system *SIP system
* Anti oil return valve for pump *Exhaust filter for pump * Air inlet filter for pump
*PC and control software, to control freeze dryer in PC, save freeze drying data

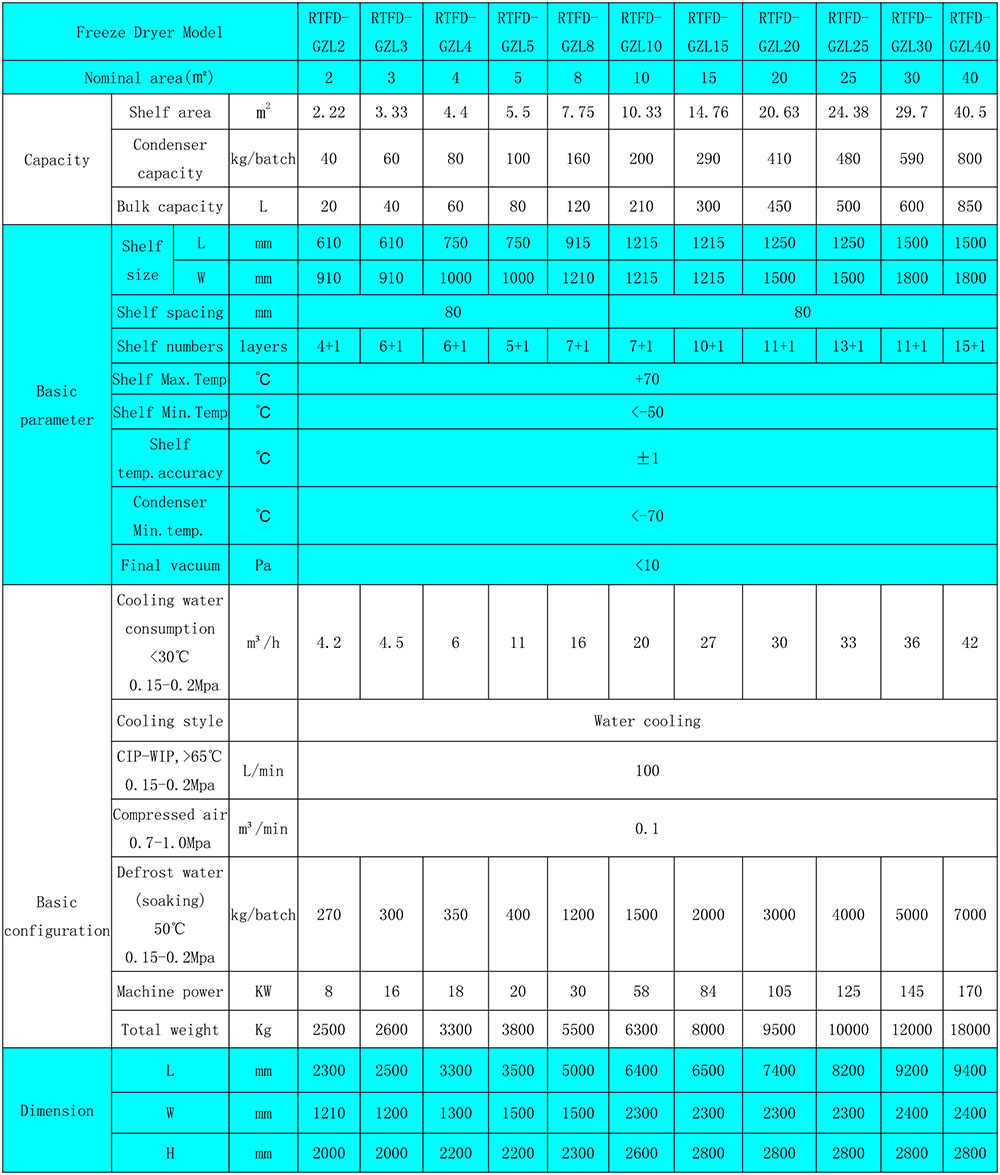

Technical Parameter
