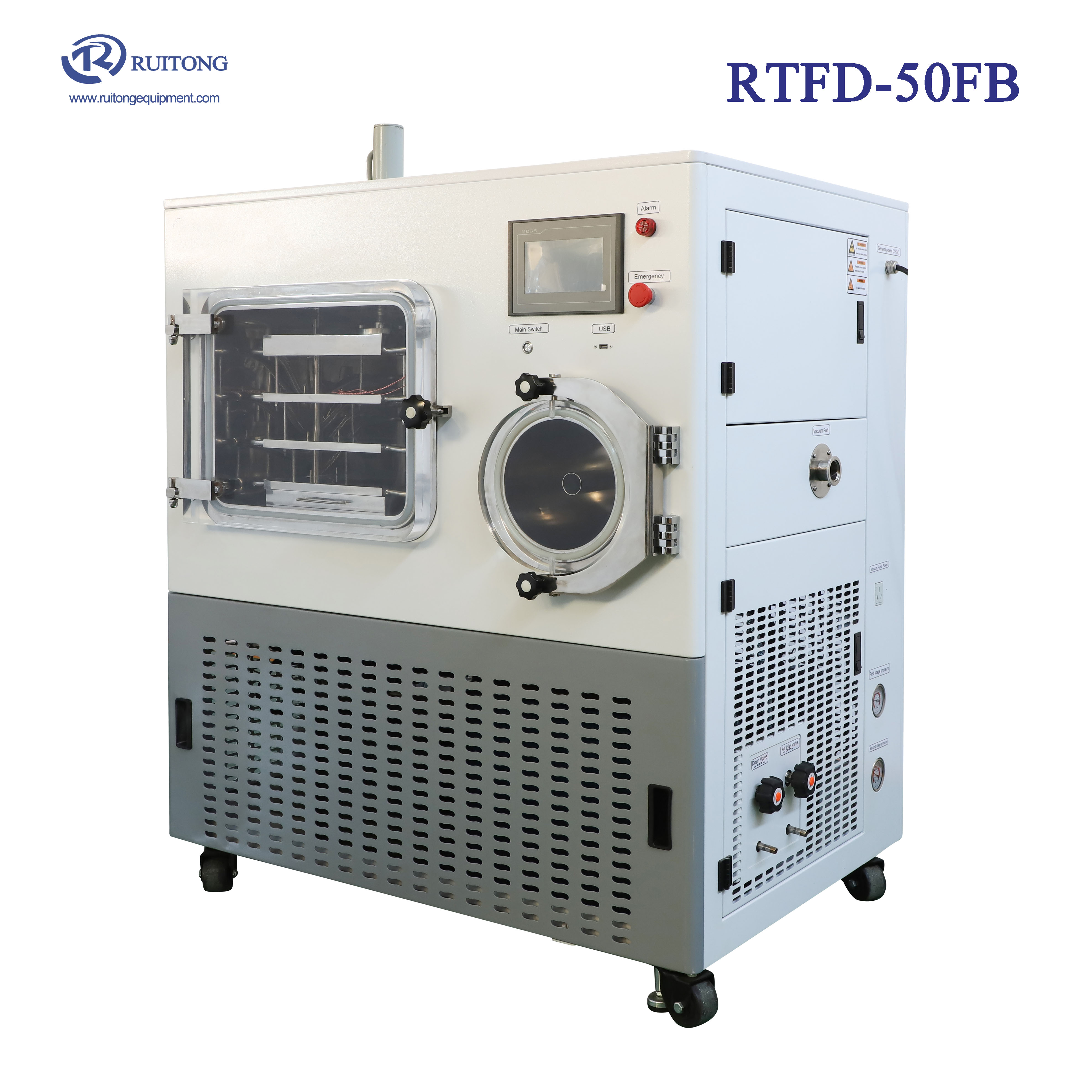

Main Features
l suitable for use in clean room
l Pre-freezing and drying process are both finished on shelf
l With silicon oil cooling and heating
l with programmable function, PID control standard
l Shelf temperature can be controlled by program
l Countless groups of program can be stored, and each program can be set up 36 segments
l With acrylic chamber door and acrylic condenser door, the whole process is easy to see
l Color LCD touch screen,English interface, display freeze drying curve, save data automatically
l Set freeze drying program on touch screen
l Inner wall of drying chamber, shelf, trays , condenser are of stainless steel SS316L
l All plate pvc coated
Technical configuration
|
Structure and Standard |
Technical parameter |
Note |
|
||
|
Parameter units & Language |
|
||||
|
Temperature |
° С |
|
|
||
|
Pressure |
bar |
|
|
||
|
Time |
min |
|
|
||
|
Vacuum |
mbar |
|
|
||
|
The main language of the control system interface |
English |
|
|
||
|
Basic configuration |
|
||||
|
Shelf Area |
0.5 M2 |
|
|
||
|
Max.Water-capture capability |
10kg/batch |
|
|
||
|
Power supply |
380V/50Hz/ 3 phases |
|
|
||
|
installation Power |
The actual working power is much less than 7.5KW |
380V/50Hz |
|
||
|
Dimension (length*width*height) |
About 800*1700*1700MM |
For reference |
|
||
|
Machine structure |
Integrated style (refrigeration units and chamber combining installation ) |
|
|
||
|
Weight |
About 800Kg |
|
|
||
|
Chamber |
|
||||
|
Chamber material |
AISI 316L stainless steel |
|
|
||
|
Door lock style |
Handle lock |
|
|
||
|
Opening angle |
＞110° |
|
|
||
|
Opening direction |
This item may be designed according to user's needs. |
|
|
||
|
Door material |
Transparent acrylic |
|
|
||
|
Temperature sensor interface |
DN15, AISI 316L |
|
|
||
|
Vacuum sensor interface |
KF16 ,AISI 304 |
|
|
||
|
Roughness of chamber and door |
Ra≤0.4um |
|
|
||
|
Temperature sensor |
Pt-100 thermal resistance |
|
|
||
|
Heat insulation material |
Polyurethane integral foam Environment friendly |
|
|
||
|
Shape of chamber |
Rectangle |
|
|
||
|
Sealing |
T type Special section silicon rubber used to seal tight at door , to insure vacuum |
|
|
||
|
Shelves |
|
||||
|
Shelf material |
AISI 316L stainless steel |
|
|
||
|
Roughness of shelf |
Ra≤0.4um |
|
|
||
|
Number of shelf |
3+1, Top shelf as temperature compensating plate |
|
|
||
|
Tray |
405mm*405mm*35mm AISI 316L stainless steel |
|
|
||
|
Tray No |
3 Pcs |
|
|
||
|
Shelf spacing |
70 mm |
|
|
||
|
Shelf dimension (length*width*height) |
width 410mm×depth 410×height 18mm |
|
|
||
|
Temperature decreasing rate |
+20℃～-30℃≤60 Min (empty) |
|
|
||
|
Temperature elevating rate |
-40℃～+20℃≤60 Min (empty) |
|
|
||
|
The flatness of the shelves |
± 0.5 mm / m. |
|
|
||
|
The temperature deviation on all shelves |
( -40 to + 40 ° C at atmospheric pressure) < ± 2 ° C |
|
|
||
|
The lowest temperature |
-55℃ |
|
|
||
|
The highest temperature |
+80℃ |
|
|
||
|
Heating power |
1 KW/220V/50Hz |
|
|
||
|
Guarding rail |
Shelf and fluid splitter directly fixed by welding, to make sure that shelves do not leak oil and easy to clean during long operation.Guard bard are set at left, right, back side of shelf to prevent tray out. |
|
|
||
|
Technical advantages Stainless steel plates to ensure the finish of chamber surfaces, ensure the asepsis requirement. Shelves has high intensity and it can reaches to 0.3Mpa in the pressure test which can be able to bear the long term usage. Shelves are processed by machining ,which can ensure flatness demanding level. Temperature control accuracy ±0.5℃ (adjusted by PID, in balance) Special sealing strips for doors can prevent ponding , meets the asepsis requirement. Chamber, shelves are all carried out the leak test by helium mass spectrometer. |
|
||||
|
Condenser |
|
||||
|
material |
AISI 316L stainless steel |
|
|
||
|
shape |
Cylindrical |
|
|
||
|
Coiling Pipe material |
Copper ,outside of condenser |
|
|
||
|
Roughness of surface |
Ra ≤ 0.5 μm |
|
|
||
|
Water-capture area |
≥0.7 m2 |
|
|
||
|
Temperature decreasing parameters |
+20℃～-40℃≤30min(empty) |
|
|
||
|
Temperature sensor |
PT-100 , platinum resistance |
|
|
||
|
thermal insulation material |
Polyurethane integral foam Environment friendly |
Good heat keeping effect |
|
||
|
The lowest temperature |
-88℃(empty) |
|
|
||
|
Defrost style |
Electric defrosting |
|
|
||
|
Defrosting method |
Auto |
|
|
||
|
Water-capture capability |
10 kg/batch |
|
|
||
|
Technical advantages Stainless steel plates ensure finish of condenser surfaces, ensure the asepsis requirement. Condenser and coiled pipe are all carried out the leak test by helium mass spectrometer. |
|
||||
