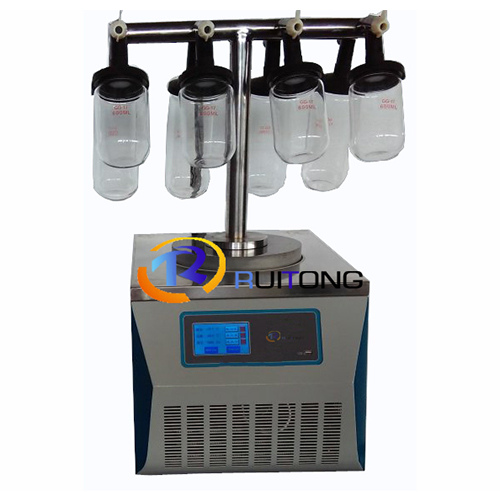

Model: RTFD-12E
General Introduction: Model RTFD-12E is suitable for freeze-drying experiment in laboratory. This equipment is used for long term preservation for bacteria, fungi and other microbial strains. After freeze drying process, samples can be sealed in the ampules.
Freeze Drying Theory:  Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After freeze drying process, a long term preservation for material is much easier. They can be restored to original state and maintain their chemical and biological characteristics after being watered. The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes the samples in advance, and then sublimates its moisture under vacuum state.
Description

Main features

♦ Control panel display in English
♦  Vacuum can be displayed in Pa or mbar
♦  Condenser with uniform and good ice capture function
♦  Small and compact structure , with easy and convenient operation
♦  Vacuum pump with high pumping speed , to reach good final vacuum
♦  Condenser made of stainless steel 304, anti-corrosion and easy to clean
♦  Stainless steel air inlet valve (drain valve) is safe, anti-corrosion , no leak
♦ Big opening condenser with external coiling tubes, has pre-freezing function
♦  Color LCD touch screen displays running time, display sample temperature, condenser temperature ,
vacuum degree, and save data automatically
♦  Display sample temperature curve, condenser temperature curve and vacuum curve
♦  With USB port to output freeze drying data, open and view data in Excel format
♦  CFC-free refrigerant , low noise SECOP compressor, good efficiency


Options

♦ Vacuum control valve
♦ Intake backfilling filter
♦  Air inlet filter for pump
♦  Nitrogen inflation valve
♦  Eutectic point test device
♦  Electricity heating defrosting
♦  Exhaust filter/oil mist filter for pump
♦ Cascade refrigeration ,condenser temperature -80℃
♦  Check valve for pump to prevent oil sucked into chamber
♦  RS232 and software: Check and keep freeze drying data on computer, control freeze dryer through PC

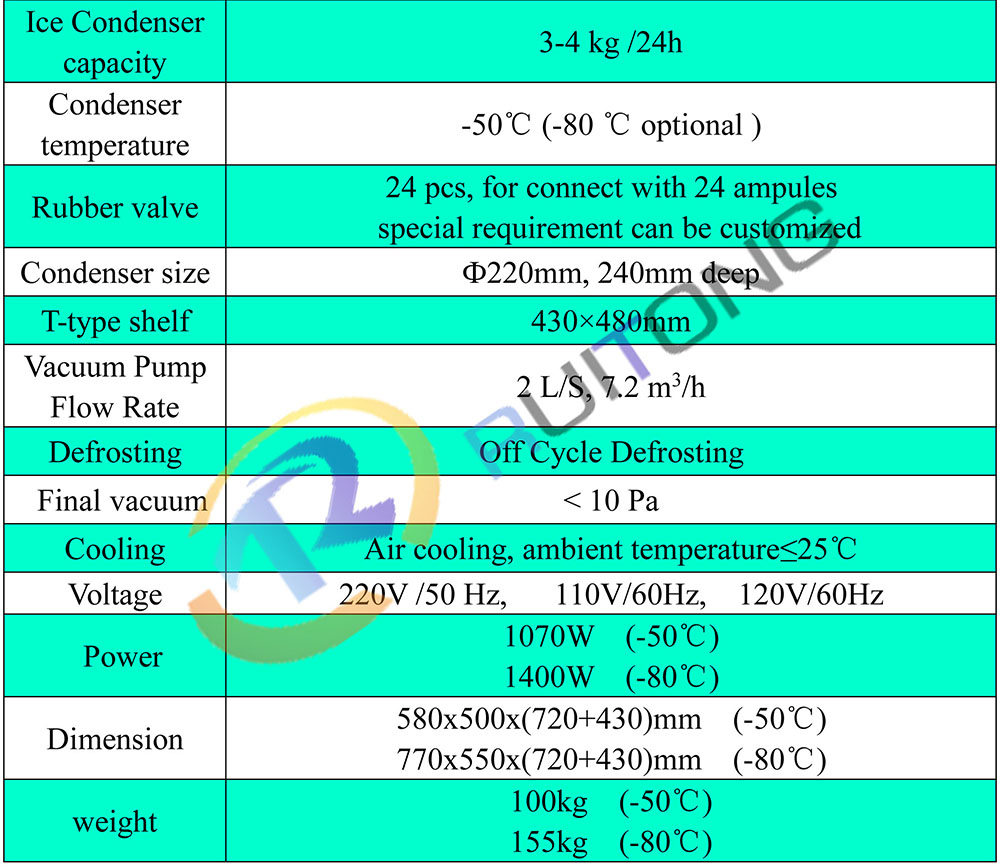

Technical Parameter RTFD-12E
